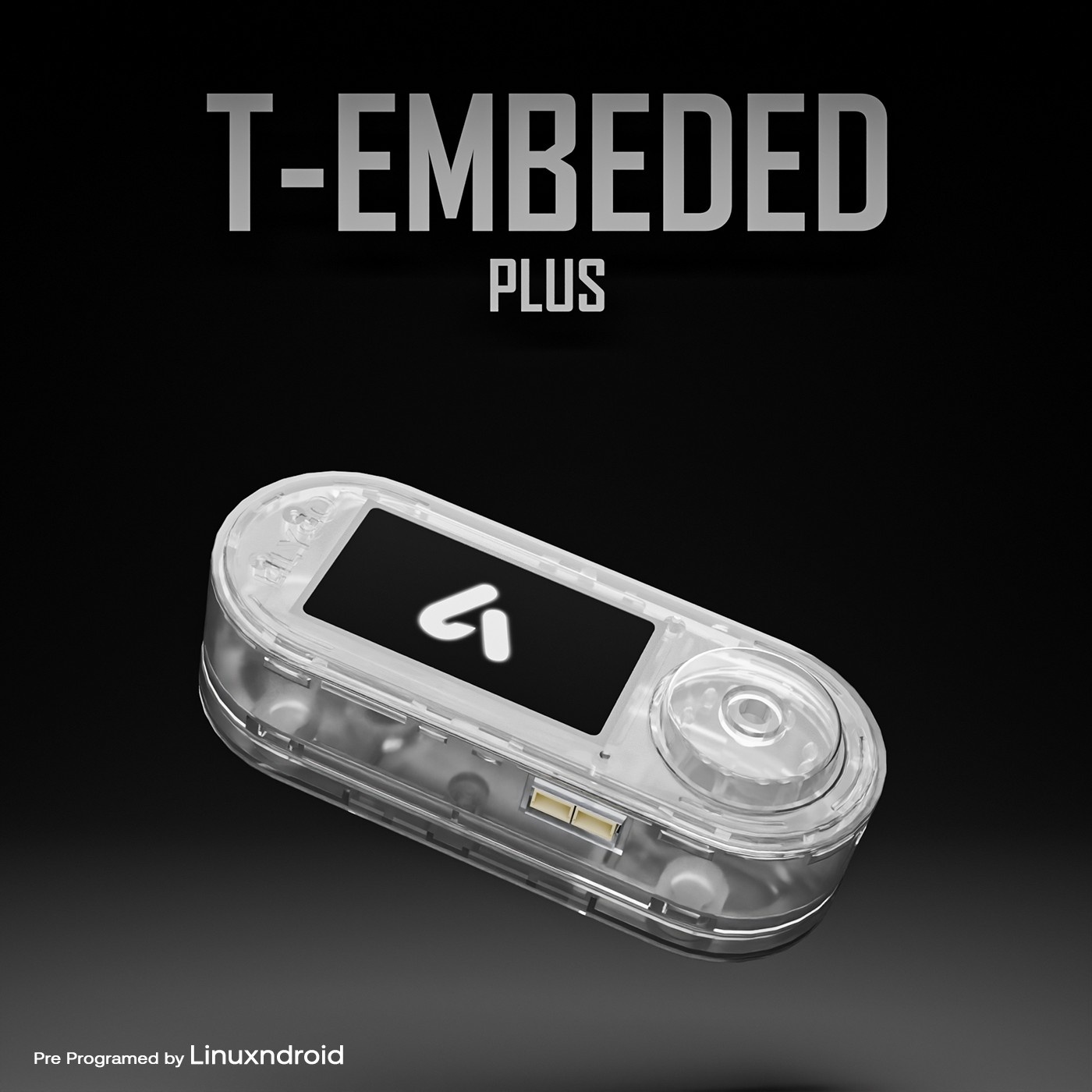

LILYGO T-Embed CC1101 Plus + ESP32-S3 + PN532 NFC/RFID+ Nrf24LA Wireless Transceiver Module With 1.9inch IPS LCD Display
The T-Embed CC1101 Plus is simply the T-Embed CC1101 with an added nRF24L01 module.
LILYGO launched the T-Embed CC1101 Plus, built around the ESP32-S3 Dual-core LX7. It supports Wi-Fi, BLE 5, and Sub-GHz wireless communication, targeting remote and low-power IoT projects.
The ESP32-S3 microcontroller is paired with 16MB of Flash memory and 8MB of PSRAM. The CC1101 chip operates across frequency bands of 300-348 MHz, 387-464 MHz, and 779-928 MHz, with a communication range of up to 50 meters.
The board features a 1.9-inch ST7789V IPS color TFT LCD with a resolution of 320 x 170 pixels, interfaced via SPI with the ST7789V driver chip.
Additionally, the board is equipped with an infrared transmitter and receiver, a built-in microphone, and a PN532 NFC/RFID transceiver for contactless communication at 13.56 MHz.
Supporting both USB and Li-Po battery power, the board includes an onboard 1300mAh Li-Po battery, allowing independent operation for prolonged periods in remote sensor applications.
It is also compatible with popular development platforms like Arduino IDE and ESP-IDF, offering flexibility for IoT, wireless communication, or sensor-based projects.
Specifications:
| MCU | ESP32-S3 Dual-core LX7 microprocessor |
| Flash | 16MB |
| Programming Platform | Arduino-ide、 ESP-IDF |
| RSRAM | 8MB |
| Onboard functions | Reset + Boot Button , IR Transmit & Receive |
| Bat voltage detection | IO04 |
| Wireless | Wi-Fi 802.11 b/g/n，BLE 5 |
| Support | Worldwide 2.4GHz ISM band operation |
1.9 inch ST7789V IPS color TFT LCD
| Interface | SPI |
| Drive Chip | ST7789 |
| Resolution | 170(H)RGBx 320(V) |

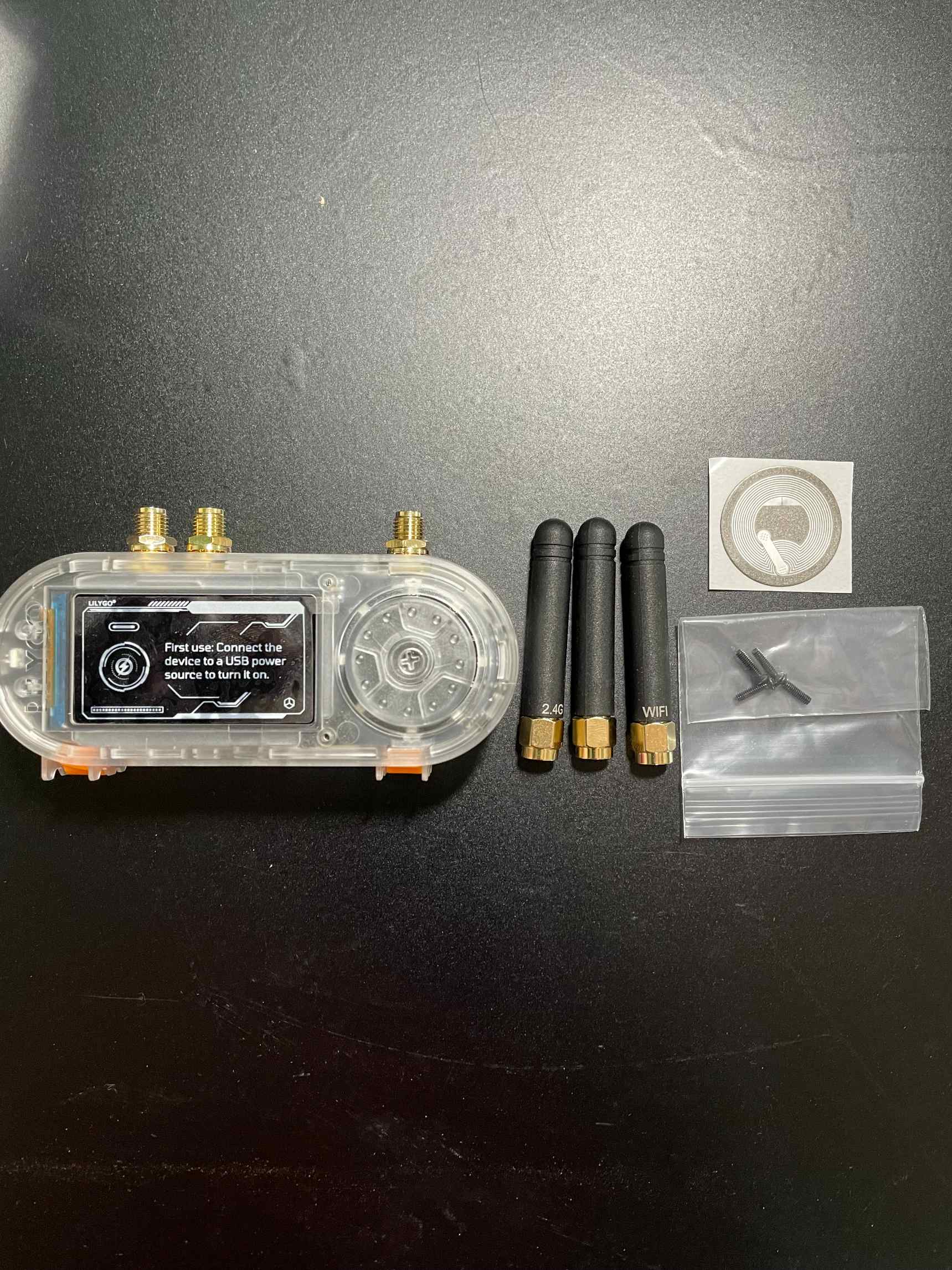

Package Included:
1 Lilygo T-Embed Plus With Pre Prgram Bruce Firmware
