BW16 is a dual-frequency Wi-Fi Bluetooth SoC module based on RTL8720DN. BW16supports dual-frequency (2.4ghz or 5ghz) WLAN and low-power Bluetooth5.0 it integrates ARM V8 (compatible with Cortex-M4F) high-performance MCU, ARMV8M(compatible with Cortex-M0) low-power MCU, WLAN(802.11 a / b / g / n),MAC, Bluetooth baseband and RF baseband) and provides a set of configurable GPIO ports for the control of different peripherals. BW16 integrates internal memory, supports some simple application development, and realizes complete Wi-Fi and BT 5.0 protocol functions.
Specifications:
- Model: BW16

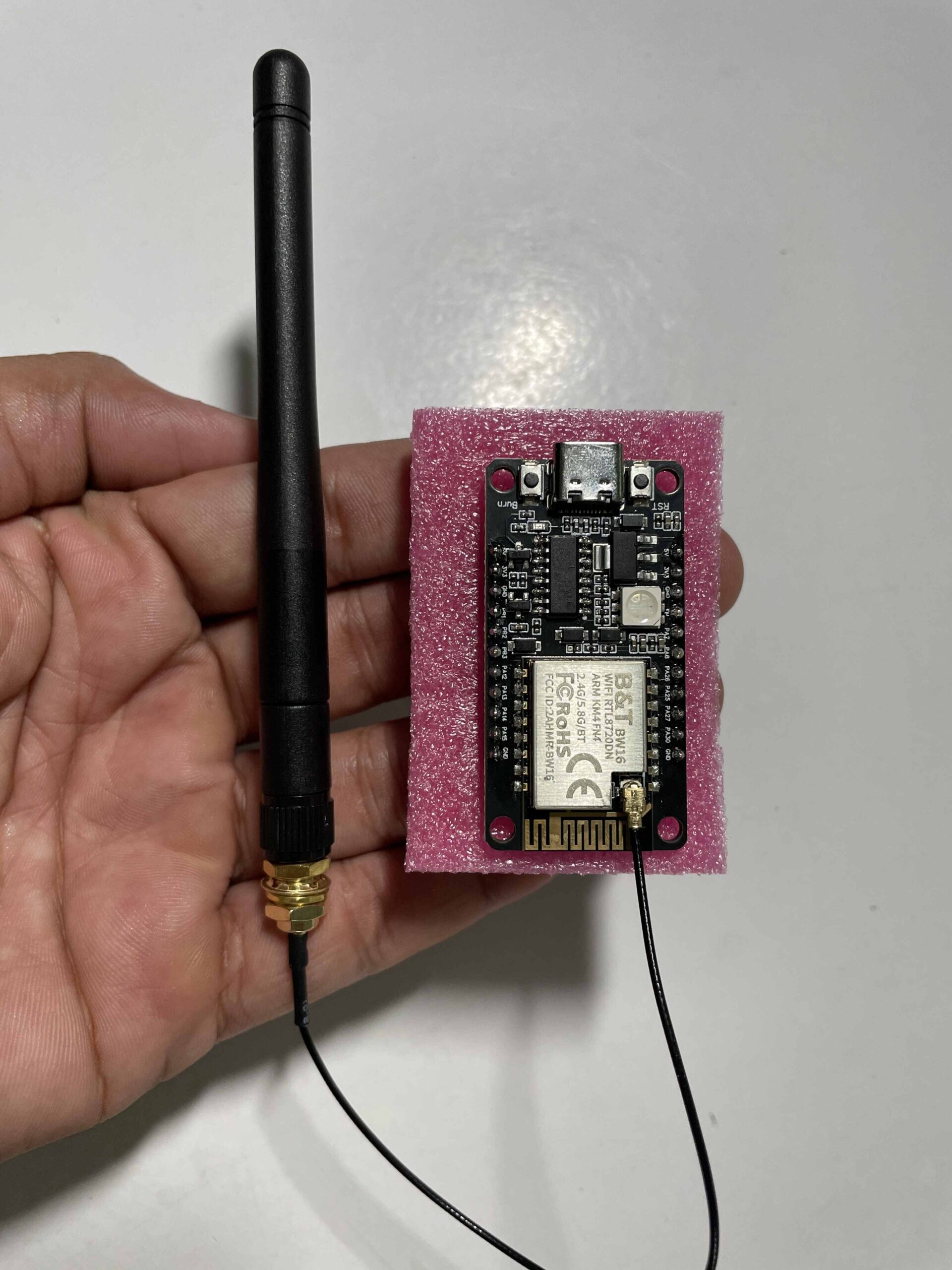

- Antenna: PCB or IPEX antenna
- Frequency Range: 2400-2483.5MHz or 5180-5825MHz
- Bluetooth: BT5.0
- Bluetooth Frequency Range: 2.402GHz – 2.480GHz
- Operating Temperature: -20℃ ~ 70℃
- Storage Environment: -40℃ ~ 125℃ , < 90%RH
- Power Supply: Voltage 3.0V ~ 3.6V, Typ:3.3V, current >450mA
- Interface: UART/GPIO/ADC/PWM/IIC/SPI/SWD
- FLASH: Default 16Mbit (Support 16Mbit/32Mbit/64Mibt/128Mbit)
Package Included:

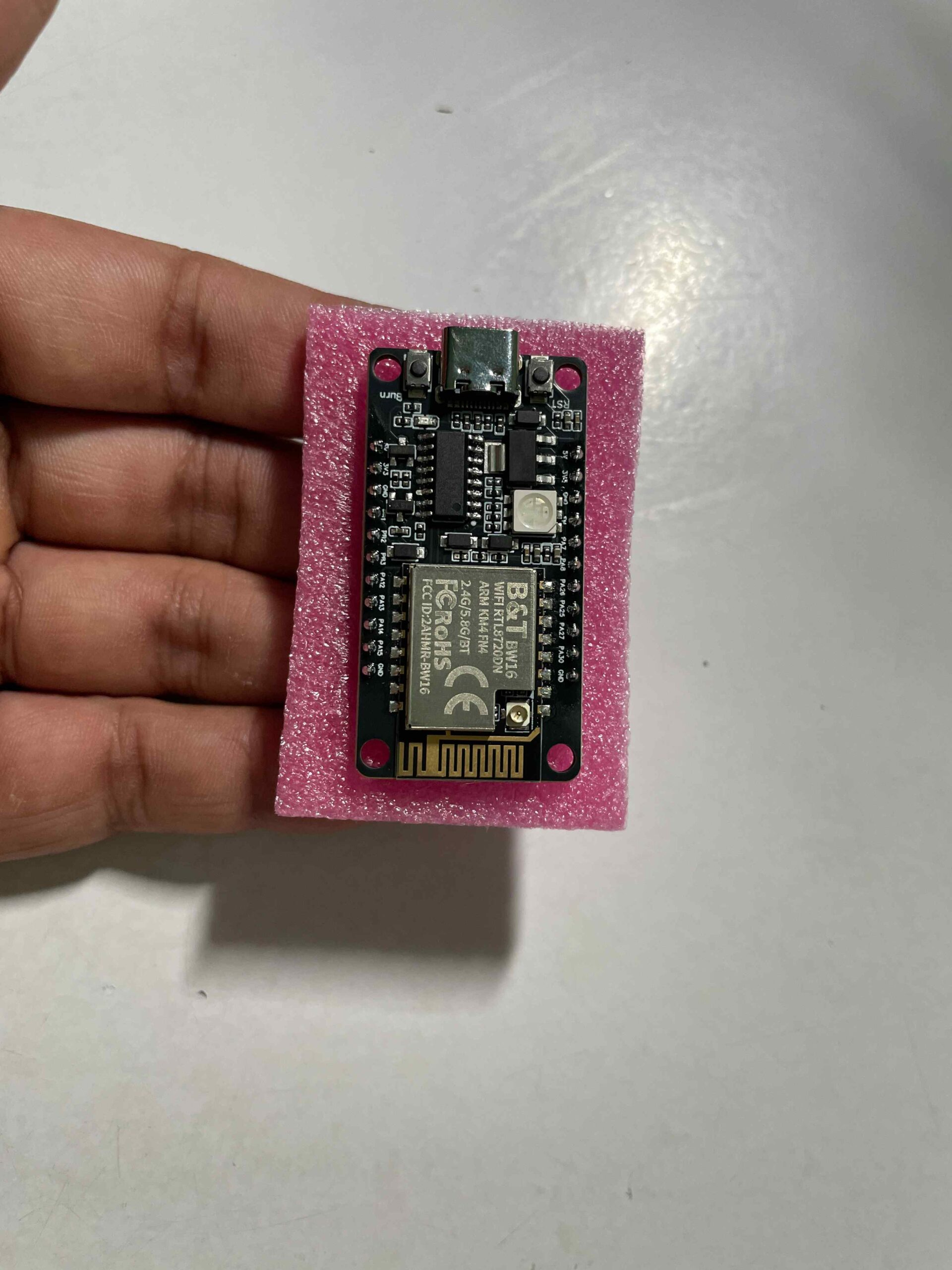

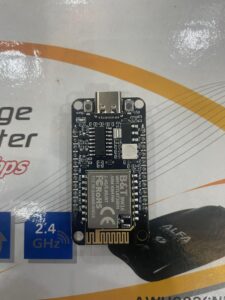

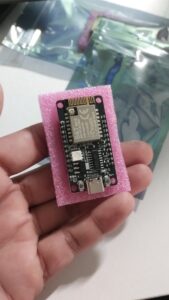

1 Pre-installed Firmware BW16-Kit WiFi Development Board
Delivery Time:
We take 3 to 7 days to deliver the product to your home.
Legal Compliance:
Users are responsible for ensuring their use of the BW16 device complies with all applicable laws and regulations. Linuxndroid disclaims any liability for misuse.
